e4Q DC quattro charger (2-4s Lipo) Requires External power supply or 12v source
Register or login to view pricing

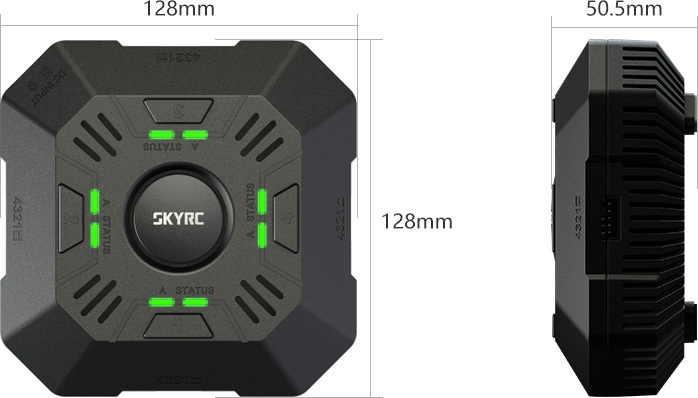

Dimensionï¼?128x128x50.5mm
Net Weightï¼?280g
Net Weightï¼?280g

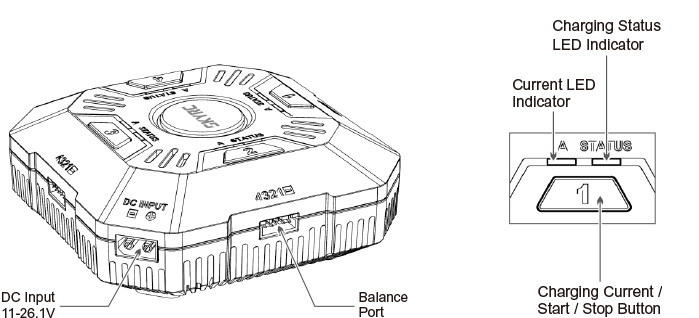

Buttons And Port
The e4Q multi-function charger uses four completely independent but identical circuits with a power output of 50W per power. It is designed for charging 2-4 LiPo batteries. Insert the battery into the right connector of each port, charge The appliance will also charge 4 battery times. The charging current can be adjusted by pressing the button 2A / 3A / 5A The charging capacity can show the charging current in the LED indicator through the color change
Power
DC Input: 11-26.1V
Charge Circuit Power: 4 x 50W ±10%
Charging model: balance charging
Charge Circuit Power: 4 x 50W ±10%
Charging model: balance charging
Charge Current Range: 2A/3A/5A
Charge saturation voltage:4.20V±0.02V/CELL
Balance current :Max 400mA/CELL
Charge saturation voltage:4.20V±0.02V/CELL
Balance current :Max 400mA/CELL
LED light
LED light charging current display
The first three-color LED lights represent Ampere (A)
(SK-100140)
| SKU | SK-100140 |
| Brand | SKYRC |
