The Tornado RC C-80 is a simple yet powerful dual input multifunctional charger with built in LiPo balancing (JST-XH) for up to 6S Lithium batteries.
It is packed with features that exceeds many higher cost units.
Primarily designed for Lithium Polymer (LiPo, Li-Poly) batteries, it can also charge Li-Ion, Li-Fe (A123M1), Ni-Cd, Ni-MH, and Pb (lead acid) batteries.
Features
- Capacity Limit
- Maximum safety
- Temperature monitoring
- Input power monitoring
- Easy to program buttons
- 5 battery memory
- Individual cell monitoring
- 2-Line Back lit LCD display
- Built in Balancer to 6S packs
- Cycle charging/discharging
- Includes "FAST" & "STORAGE" Li-xx programs

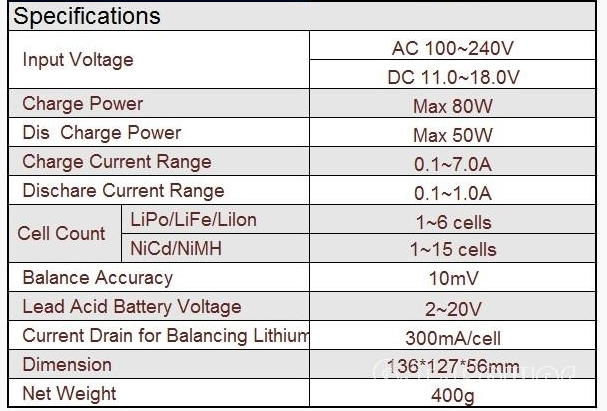

Product Details
- Output 80W
- Discharge 5W
- Balancing current 300mAh/cell
- Operating input voltage : 10 - 18V DC or 100-240V AC
- Ni-Cad / Ni-MH : 1 - 15 Cells
- Li-Ion / Li-Po / Li-Fe : 1 - 6 Series
- Charge current : 0.1 - 7.0A
- Discharging current: 0.1 - 1.0A
- PB / Lead Acid : 2 - 20V
- Built in Cell Ballancer : Up to 6S (series) Li-Po (JST-XH connectors)
- No. of Cycles : Up to 5 Cycles
- Weight : 400g
- Dimensions : 136mm x 127mm x 56mm

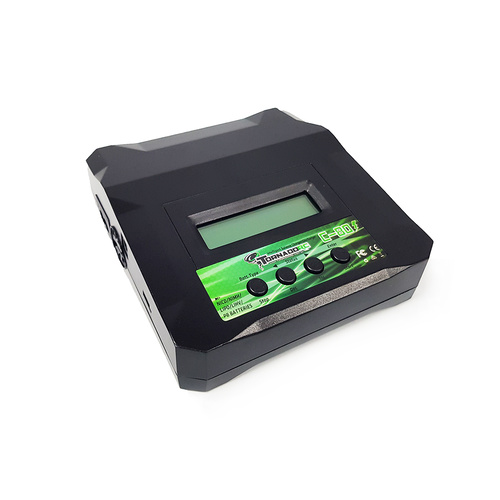

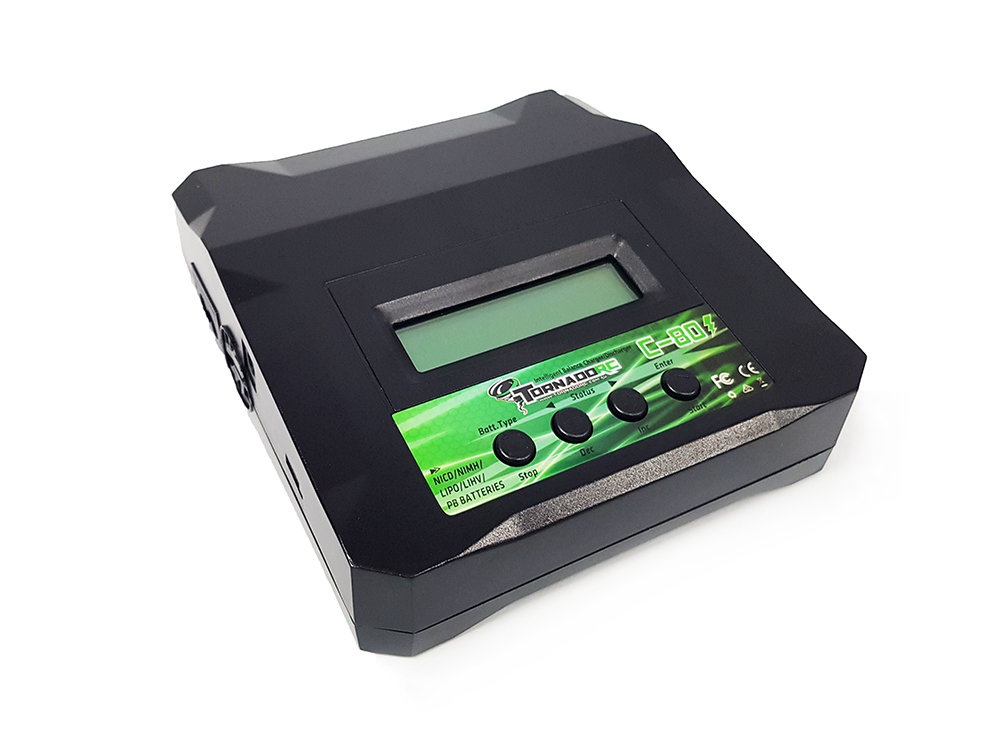

Includes (see above photo)
1 x Charger
1 x Alligator Clips to DC Cable
1 x Alligator Clips to Dean style connector
1 x Mini JST (red) connector to Dean style connector cable
1 x Female servo connector to Dean style connector cable
1 x Glow plug connector to Dean style connector cable
1 x 4mm banana connectors to Dean style connector cable
1 x Mains "kettle" lead with AU plug
1 x Manual
(TRC-C80)
SKU | TRC-C80 |
Barcode # | 2000000005331 |
Brand | Tornado RC |
