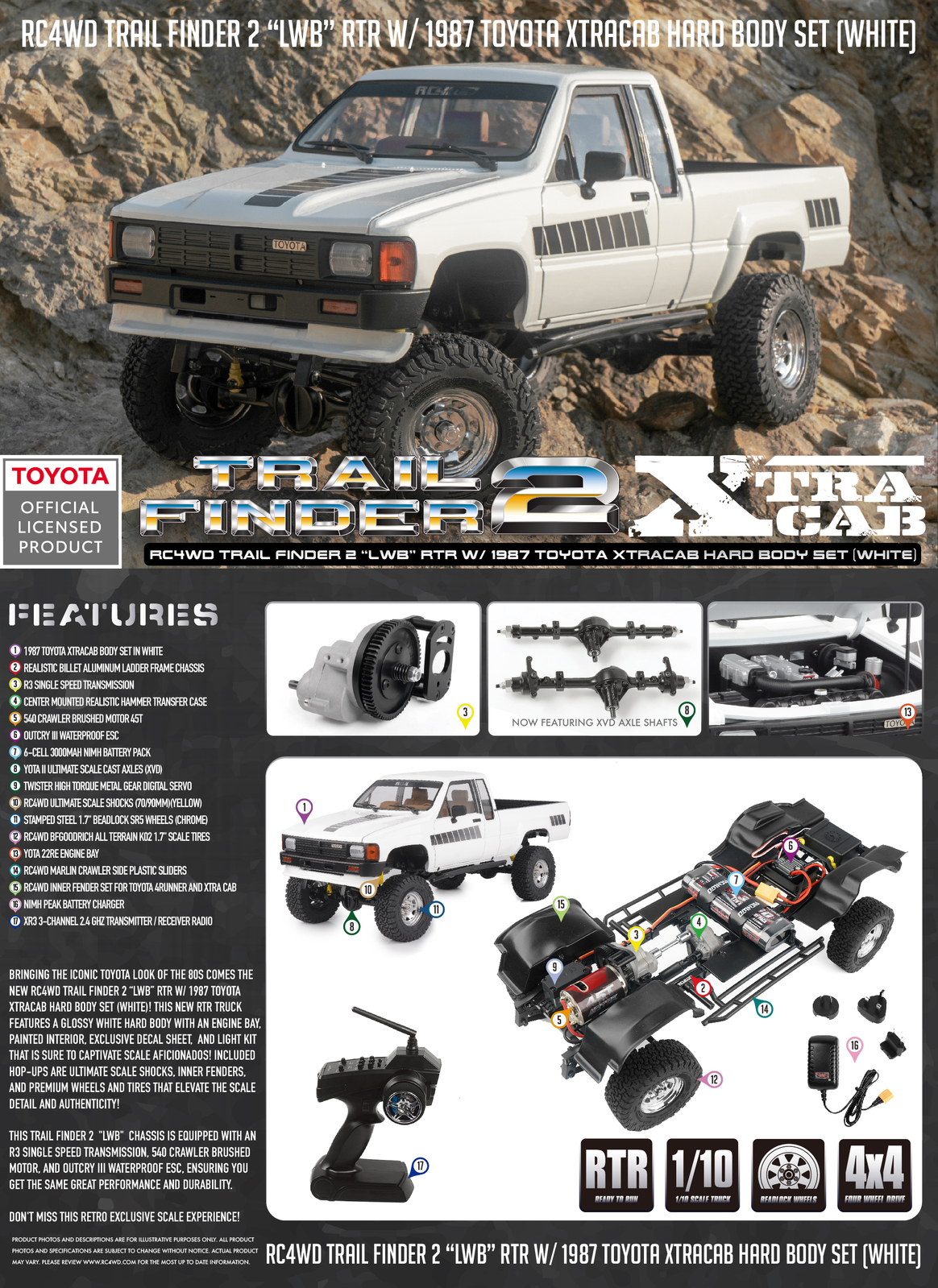

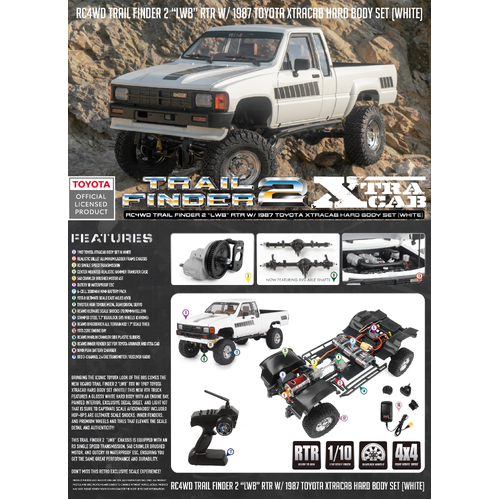

RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White)



Bringing the iconic Toyota look of the 80s comes the new RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota Xtracab Hard Body Set (White)! This new RTR truck features a glossy white hard body with an engine bay, painted interior, exclusive decal sheet, and light kit that is sure to captivate scale aficionados! Included hop-ups are ultimate scale shocks, inner fenders, and premium wheels and tires that elevate the scale detail and authenticity!

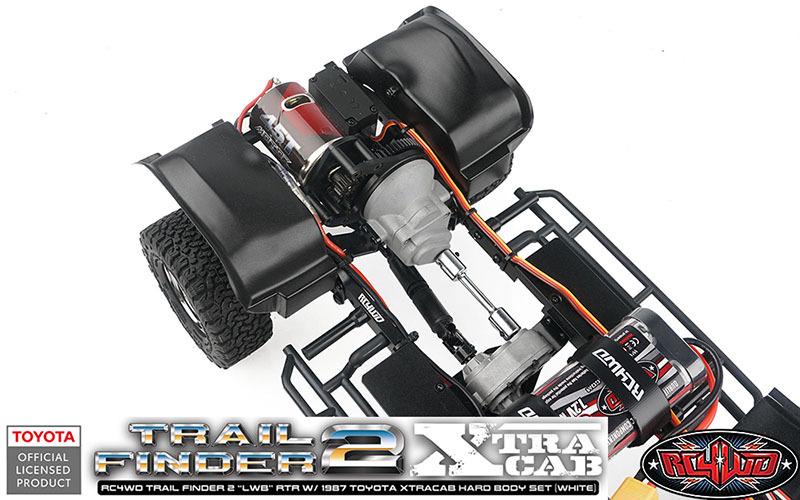

This Trail Finder 2 "LWB" chassis is equipped with an R3 Single Speed Transmission, 540 Crawler Brushed Motor, and Outcry III Waterproof ESC, ensuring you get the same great performance and durability.

Don't miss this retro exclusive scale experience!



1987 Toyota Xtracab Body Set in White

Realistic Billet Aluminum Ladder Frame Chassis

R3 Single Speed Transmission

Center Mounted Realistic Hammer Transfer Case

540 Crawler Brushed Motor 45t

Outcry III Waterproof ESC

6-Cell 3000Mah Nimh Battery Pack

Yota II Ultimate Scale Cast Axles (XVD)

Twister High Torque Metal Gear Digital Servo

RC4WD Ultimate Scale Shocks (70/90mm) (Yellow)

Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires

Yota 22RE Engine Bay

RC4WD Marlin Crawler Side Plastic Sliders

RC4WD Inner Fender Set for Toyota 4Runner and Xtracab

NiMH Peak Battery Charger

Xr3 3-Channel 2.4Ghz Transmitter/Receiver Radio







Hammer Transfer Case

Ratio: 1.47: 1

Gears: Wide .8 Mod Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears



R3 Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1

Internal Ratio = 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch



Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex (Using 4mm TF2 Hexes): 178.2mm



Trail Finder 2 "LWB" Chassis

Billet Aluminum Constriction

Adjustable Shock Hoops



Drive Shafts

High Quality Plastic Material

Durable High Steel Yokes



Wheels

Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

Hub: 12mm Hex

Width: 23.0mm (0.90")

OD: 47.0mm (1.85")

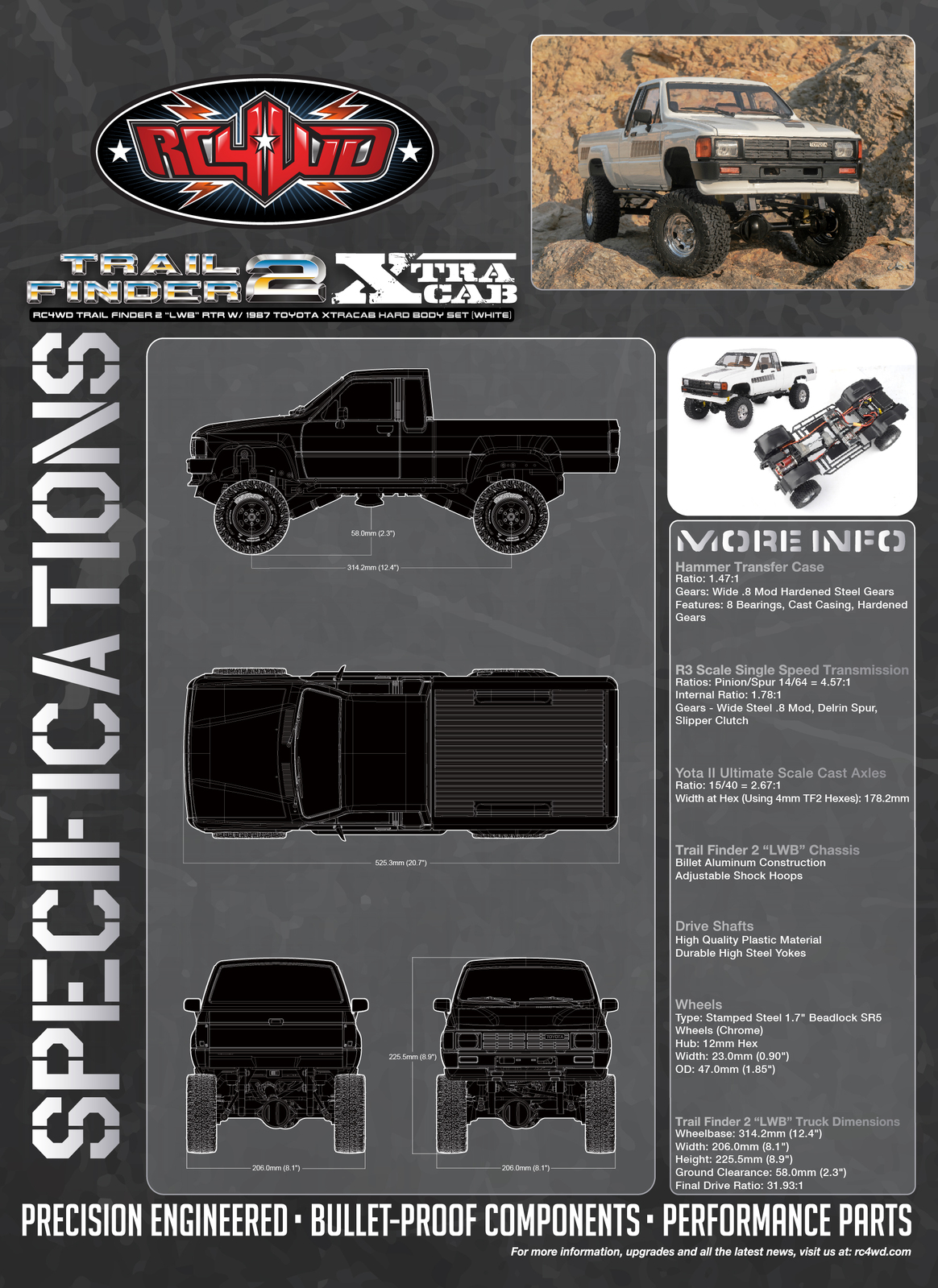

TF2 Truck Dimensions

Wheelbase: 314.2mm (12.4")

Width: 206.0mm (8.1")

Height: 225.5mm (8.9")

Ground Clearance: 58.0mm (2.3")

Final Drive Ratio: 31.93:1

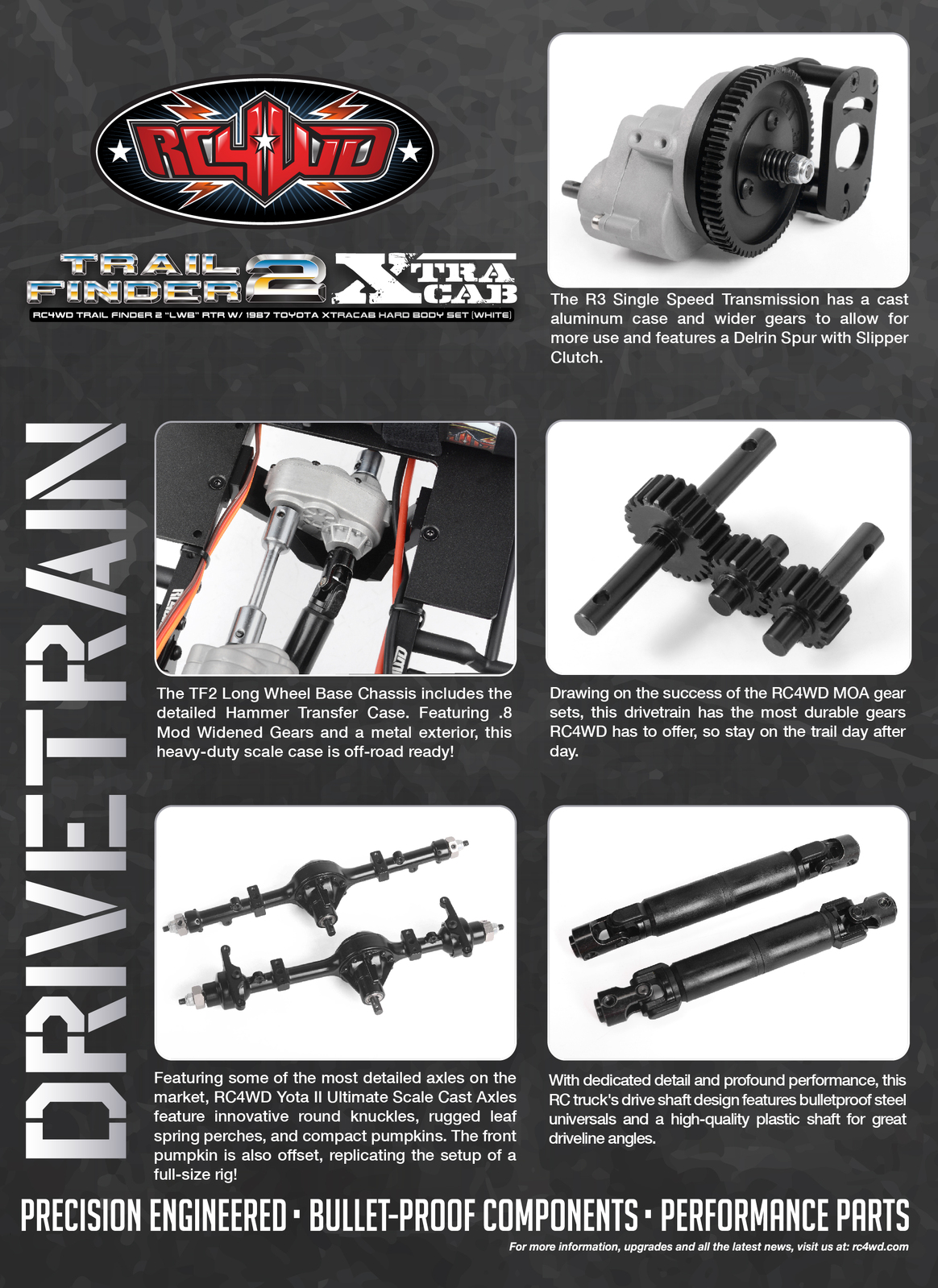

DRIVETRAIN



The R3 Single Speed Transmission has a cast aluminum case and wider gears to allow for more use and features a Delrin Spur with Slipper Clutch.

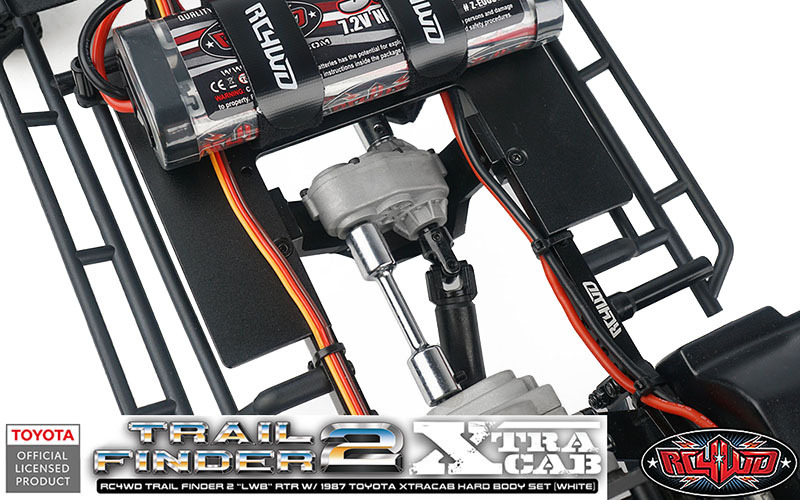

The TF2 Long Wheel Base Chassis includes the detailed Hammer Transfer Case. Featuring .8 Mod Widened Gears and a metal exterior, this heavy-duty scale case is off-road ready!



Drawing on the success of the RC4WD MOA gear sets, this drivetrain has the most durable gears RC4WD has to offer, so stay on the trail day after day.



Featuring some of the most detailed axles on the market, RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, rugged leaf spring perches, and compact pumpkins. The front pumpkin is also offset, replicating the setup of a full-size rig!



With dedicated detail and profound performance, this RC truck's drive shaft design features bulletproof steel universals and a high-quality plastic shaft for great driveline angles.

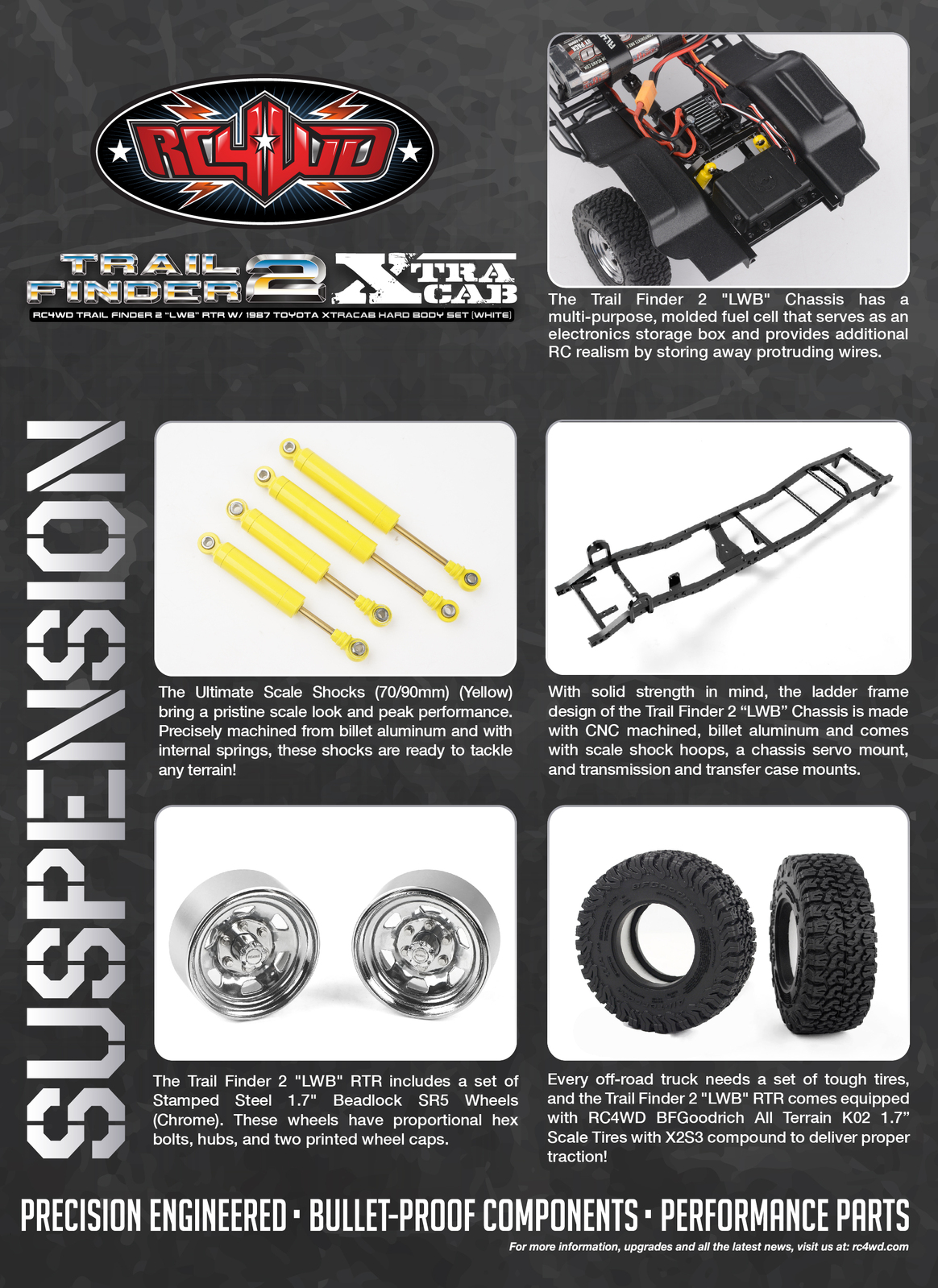

SUSPENSION



The Trail Finder 2 "LWB" Chassis has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away protruding wires.

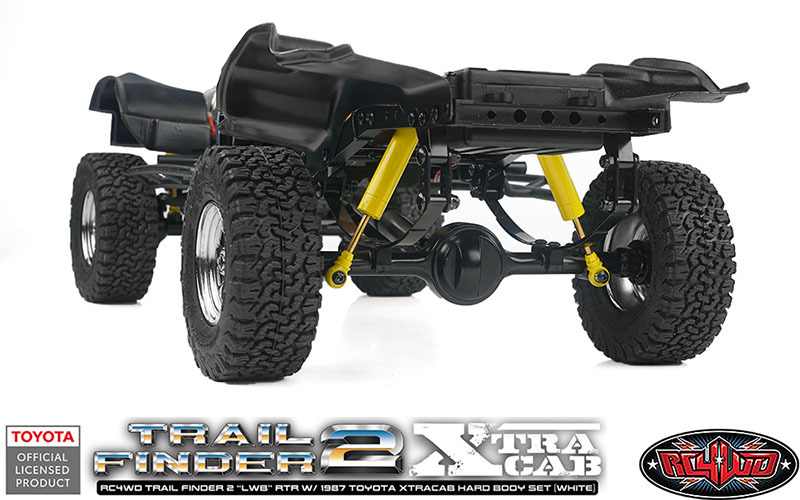

The Ultimate Scale Shocks (70/90mm) (Yellow) bring a pristine scale look and peak performance. Precisely machined from billet aluminum and with internal springs, these shocks are ready to tackle any terrain!

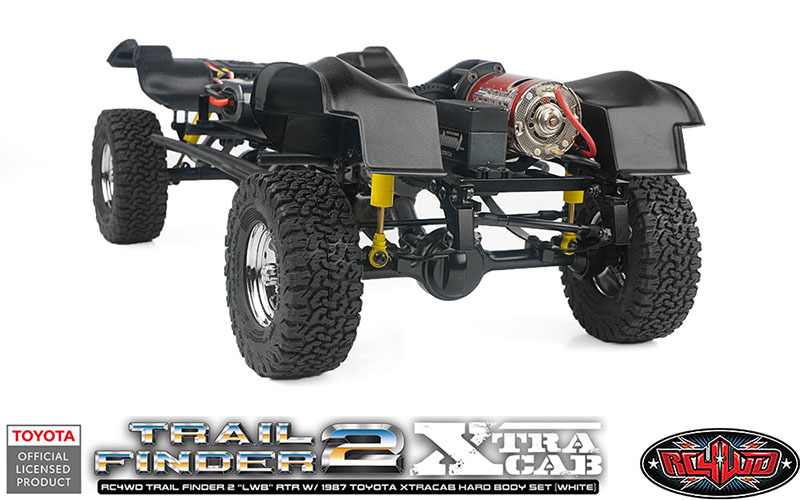

With solid strength in mind, the ladder frame design of the Trail Finder 2 “LWB” Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.



The Trail Finder 2 "LWB" RTR includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome). These wheels have proportional hex bolts, hubs, and two printed wheel caps.



Every off-road truck needs a set of tough tires, and the Trail Finder 2 "LWB" RTR comes equipped with RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires with X2S3 compound to deliver proper traction!

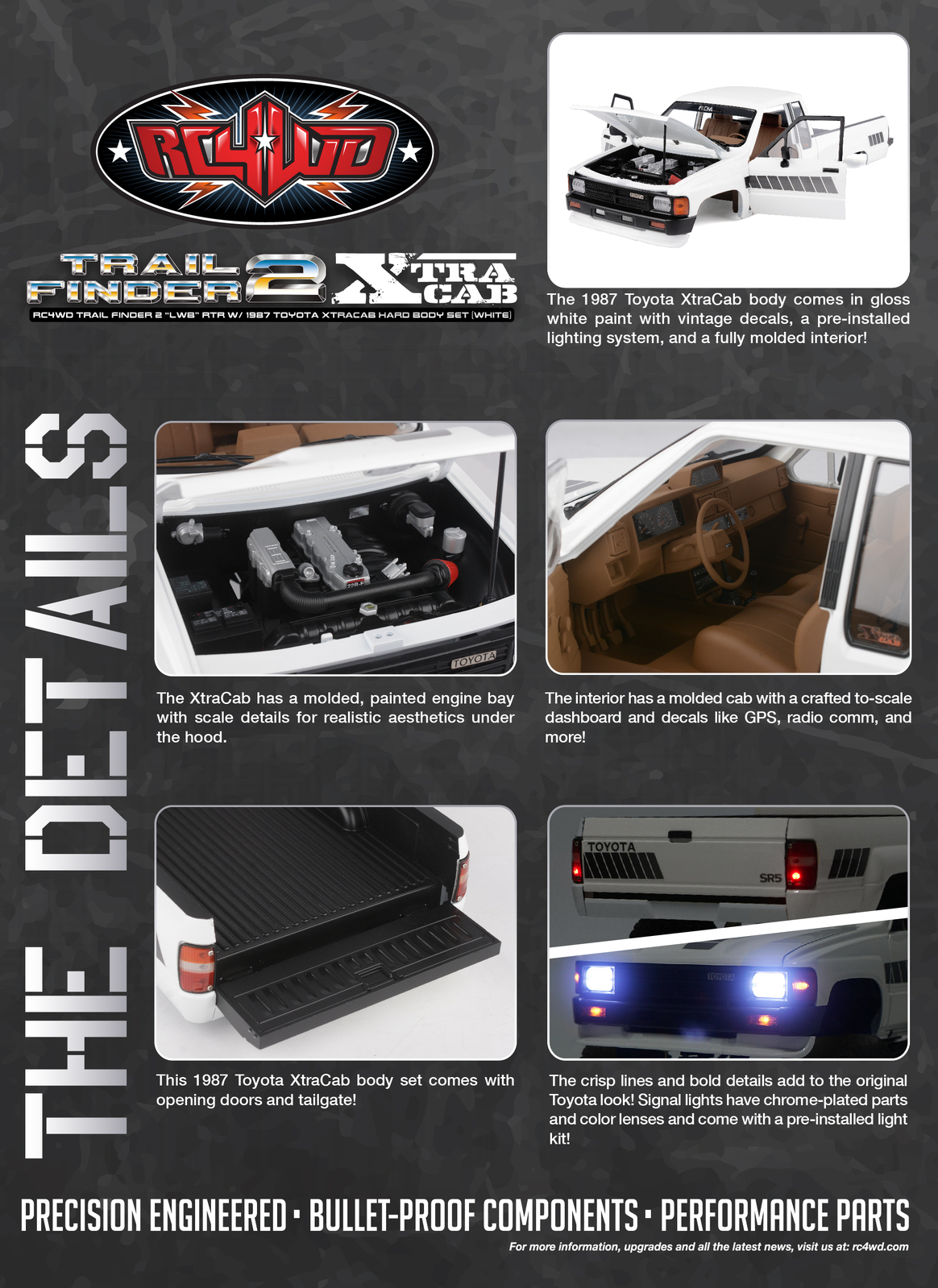

DETAILS

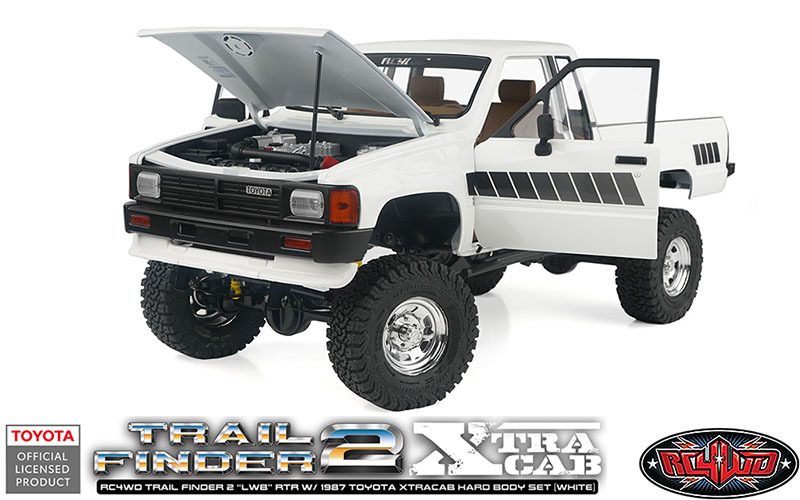

The 1987 Toyota XtraCab body comes in gloss white paint with vintage decals, a pre-installed lighting system, and a fully molded interior!



The XtraCab has a molded, painted engine bay with scale details for realistic aesthetics under the hood.



The interior has a molded cab with a crafted to-scale dashboard and decals like GPS, radio comm, and more!



This 1987 Toyota XtraCab body set comes with opening doors and tailgate!



The crisp lines and bold details add to the original Toyota look! Signal lights have chrome-plated parts and color lenses and come with a pre-installed light kit!









ELECTRONICS



The Trail Finder 2 "LWB" Chassis includes a high quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio positions!



The Trail Finder 2 "LWB" Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long lasting performance at its core, this power machine comes tuned for rock climbing and scale driving.



The popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake is included for reliable, constant power on demand at any time.



With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.



It's ALL in the box! Everything you need is provided to get you on the trails today!



































What's Included:

• 1x RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White)
