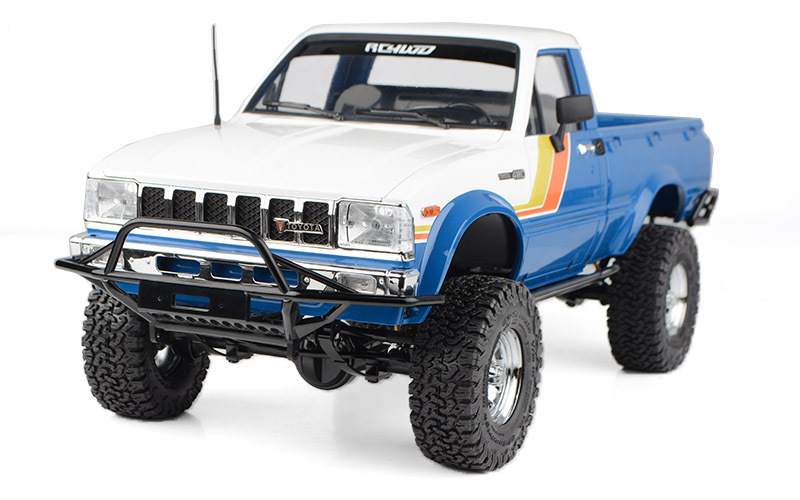

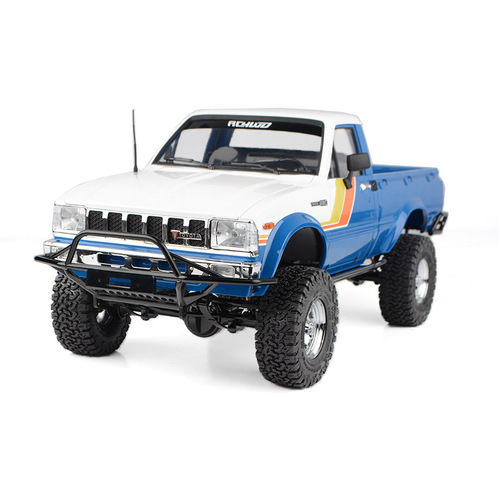

RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue)

RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue)





This is the all new Licensed RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) . This has been Officially Licensed by Toyota and is only available from RC4WD and our Dealers





The 1982 Toyota pickup truck, recognized for its timeless design, is now an exciting addition to the RC4WD 1/10 ready-to-run line-up!



This licensed RTR showcases the iconic '80s Toyota livery paint style found on full-size classic models of that era! Hit the showroom floor and open the hood to show off the 22R Engine Bay with painted parts and dress-up kit! Authentic scale details include metal emblems, fitted inner fenders, a molded interior, and a pre-installed led kit.



New suspension updates allow for better articulation out of the box, with the helper leaf springs and inner shock springs uninstalled but included for personal tuning! The shocks feature x-ring technology which reduces contact friction for smooth shaft movement while improving oil retention around the shock shaft.



The Trail Finder 2 chassis features years of trail testing and comes with innovative new features! An updated version of the Yota II front axle now includes upgraded XVDs. The leaf springs come installed under the axles, lowering the ride height and center of gravity for better stability while off-roading. The steering knuckles are improved for increased strength and durability.



Elevate your ultimate scale experience today with the impressive looks and performance of this 1/10 Toyota RTR!



1982 Toyota Pickup Hard Body

Yota 22R Engine Bay w/ Dress Up Kit

Led Basic Lighting System

Stamped Steel 1.7" Beadlock SR5 Wheels

BFGoodrich All Terrain K02 1.7" Scale Tires

The Ultimate Scale Shocks (60/80mm)

Yota II Ultimate Scale Cast Axles (XVD)

Super Soft Flex Leaf Springs

540 Crawler Brush Motor 45T

R3 Single Speed Transmission

Center Mounted Hammer Transfer Case

Twister High Torque Metal Gear Digital Servo

Outcry III Waterproof Esc

6-Cell 3000mAh NiMH Battery w/ XT60 Plug

Marlin Crawler Side Plastic Sliders V2

Rear Plastic Tube Bumper

Front Inner Fender Set

XR3 3- Channel 2.4Ghz Transmitter / Receiver Radio

Universal NiMH Peak Battery Charger







Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears



R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch



Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm



Trail Finder 2 Chassis Features

Features: Billet Aluminum Construction, Adjustable Shock Hoops



Wheels

Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

Hub: 12mm Hex

Width: 23mm (0.90")

OD: 47mm (1.85")



Tires

Type: RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires

Outer Diameter: 91.4mm (3.59")

Width: 34.3mm (1.35")

Inner Diameter: 43.2mm (1.70")



Trail Finder 2 Truck Dimensions

Wheelbase: 284mm (11.2")

Width: 214mm (8.4")

Height: 203mm (8.0")

Ground Clearance: 45mm (1.8")

Final Drive Ratio: 31.9:1

















DRIVETRAIN



The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.



The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.



Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.



The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.



The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.





SUSPENSION



The shocks feature X-ring technology which reduces contact friction for smooth shaft movement while improving oil retention around the shock shaft.



The Trail Finder 2 Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!



With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.



This truck includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) with Scale wheel hubs. The wheels are made from stamped steel and have a smooth silver finish for added detail.



Every RTR needs a tough set of tires to hit the trails and the included RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires deliver the perfect amount of traction with its advanced X2S3 soft and sticky compound. The scale details complete the look in just the right size.











DETAILS



This 1982 Toyota Pickup model features an impressive display of scale details including mirrors, door handles, vents, front grille, and more!



The body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.



This 1982 Toyota Pickup features a fully molded 22R engine bay as well as a dress-up kit that brings out the details and makes this classic model stand out!



This 1982 Toyota Pickup interior cab features durable molded hard plastic that matches the full-size vehicle. Air vents, steering wheel, and shift knob are all present to show the realism! Go ahead and pack in your driver model to further enhance the look!



The preinstalled ultra-bright LED kit illuminates the trail and keeps the action going long after the sun sets! This blend of stunning realism and functionality is optimal for night adventures!





ELECTRONICS



Straight out of the box, an LED light set comes professionally installed and out of sight, keeping that realistic look.



The Trail Finder 2 Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long-lasting performance at its core, this power machine is tuned for rock climbing and scale driving!



Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!



With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.



It's ALL in the box! Everything you need is provided to get you on the trails today!































What's Included:

• 1x RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue)
