RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set

RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set





Take your adventures to the next level with the Trail Finder 2—the off-road platform that evolves with you. Built for customization, this rugged machine is fully compatible with an extensive range of upgradeable parts, allowing you to fine-tune performance and enhance its lifelike scale appearance.



From upgraded drivetrains to detailed body accessories, the Trail Finder 2 offers endless possibilities to make it truly yours. Whether you're chasing peak performance or crafting a head-turning scale masterpiece, this truck grows with your off-road ambitions.



Unleash your creativity, conquer the terrain, and experience the freedom of a truck that's as adaptable as your wildest adventures. The Trail Finder 2—where innovation meets exploration.



R3 Scale Single Speed Transmission

Center Mounted Hammer Transfer Case

Realistic Billet Aluminum Ladder Frame Chassis

The Ultimate Scale Shocks (60/80mm) (Chrome)

Yota II Ultimate Scale Cast Axles V2 (XVD)

Super Soft Flex Leaf Springs

Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

BFGoodrich All Terrain K02 1.7" Scale Tires

Marlin Crawler Side Plastic Sliders V2

Marlin Crawler Front Winch Bumper w/Stinger V2

Rear Plastic Tube Bumper

















Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears



R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Features: Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)



Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1

Width at Hex: 178.2mm (7.01")



Trail Finder 2 Chassis

Features: Billet Aluminum Construction, Adjustable Shock Hoops



Drive Shafts

High Quality Plastic Material, Durable Steel Yokes



Wheels

Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

Hub: 12mm Hex

Width: 23mm (0.90")

OD: 47mm (1.85")



TF2 Truck Dimensions

Wheelbase: 284mm (11.2")

Width: 214mm (8.4")

Height: 203mm (8.0")

Ground Clearance: 45mm (1.8")

Final Drive Ratio: 31.9:1



Bumpers

Marlin Crawler Side Plastic Sliders V2

Marlin Crawler Front Winch Bumper w/Stinger V2

Rear Plastic Tube Bumper

Authentic Looking Crawler Style Tube Bumper. Very High Quality Flexible Plastic, Very Durable, Very Scale.







DRIVETRAIN



The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.



The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.



Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.



The RC4WD Yota II Ultimate Scale Cast Axles (XVD) are the most scale-accurate on the market, featuring 8-degree round knuckles, removable diff covers, lower mounting points, and a compact offset pumpkin. Designed for versatility, they accommodate leaf springs in over-axle and under-axle configurations, eliminating the need to flip the axle.



The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.











SUSPENSION



The Trail Finder 2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.



RC4WD Ultimate Scale Shocks deliver precision and durability. These rebuildable shocks are machined from billet aluminum and feature an internal spring design. Equipped with X-ring technology, they provide multiple sealing points for superior protection against leaks and contamination, ensuring cleaner operation, longer performance life, and reliability.


The Trail Finder 2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.



The Trail Finder 2 includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome). These wheels have proportional hex bolts, hubs, and two printed wheel caps.



Every off-road truck needs a set of tough tires, and the Trail Finder 2 comes equipped with RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires with X2S3 compound to deliver proper traction!

















DETAILS

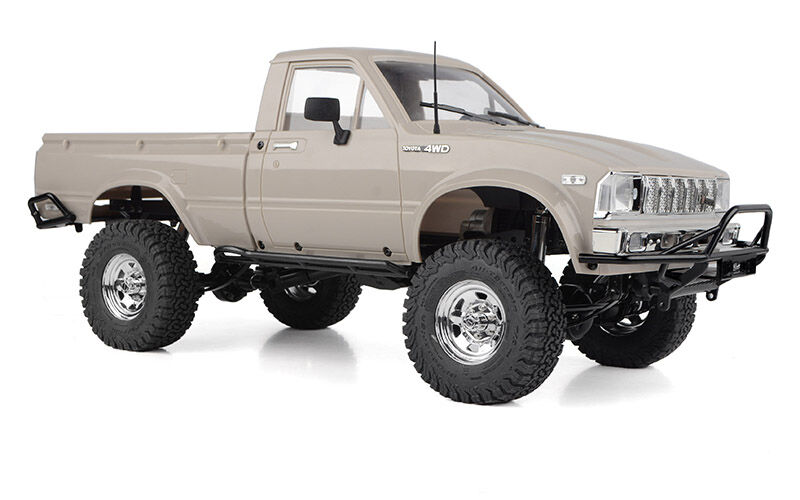

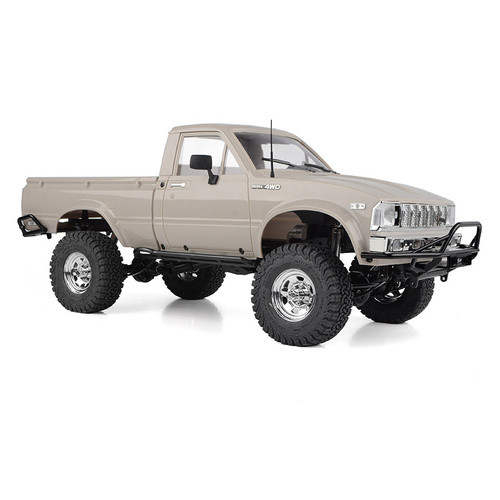

The 1982 Toyota pickup truck, recognized for its timeless design, is now an exciting addition to the RC4WD 1/10 ready-to-run line-up!



The 1982 Toyota pickup truck also includes scale rock rails plus front and rear tube rock guard bumpers. The front bumper has a winch mount built right in for an optional RC4WD winch.



The 1982 Toyota pickup truck includes a great dropped bed molded directly into the body. It’s perfect for carrying all your scale accessories or spare wheel and tire!



The 1982 Toyota Pickup Truck features a fully functional hood and can be upgraded to showcase your personalized modification style. Its simple, durable design and retro charm make it a favorite for collectors and modification enthusiasts!



The 1982 Toyota pickup truck includes a bolt on, scale accurate molded cab back with every kit so you can use just the cab for a truggy style build.

















What's Included:

• 1x RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set



This is a kit that requires building time (appro. 2-3 hours)



Required to Complete:



Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)



Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 2x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
• Charger (Consult your battery guide) Chargers



Body Kit

• Modeling / Craft Knife
• Body Reamer
• Side Cutters
• Instant glue / Plastic Cement (prefer non whitening)
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdrivers (small)
