FlySky FS-IBG01 GPS Module Support GPS Beidou Satellite Dual Satellite System

Register or login to view pricing



Calculate Shipping



Fixed Rate By Invoice Total - $14.99
FIXED RATE SHIPPING (EXCLUDING DANGEROUS GOODS , AIRCRAFT KITS , 1/5 SCALE CARS)
Free pick-up from store - $0.00
Warehouse pick available

Product Description:

FS-iBG01 supports multiple satellite systems such as GPS and Beidou, and has the
characteristics of high sensitivity, short acquisition time, strong
anti-interference ability and low power consumption of the system.

Support GPS and Beidou satellite dual satellite system positioning. In
dual-mode mode, the speed measurement accuracy is 0.05m/s, and the
positioning accuracy is better than 0.5m.



Parameters:

Product model: FS-iBG01Support satellite system: GPS, Beidou

Compatible models: cars, ships, airplanes, robots, etc.

Tracking: -167dBm

Capture: -160d Bm

Cold start: -148dBm

Warm start: -157dBm

Cold start time: average 26s

Hot start time: average 1s

Positioning accuracy: 0.3 degrees

Speed measurement accuracy: 0.05 m/s

Time Accuracy: RMS 99% 30ns

Maximum height: 50,000m

Acceleration: ≤4g

LED display: yes

Update frequency: 10Hz

Data format: i-BUS2

Input power: 3.5~9V/DC

Temperature range: -10℃~+60℃

Humidity range: 20%~95%

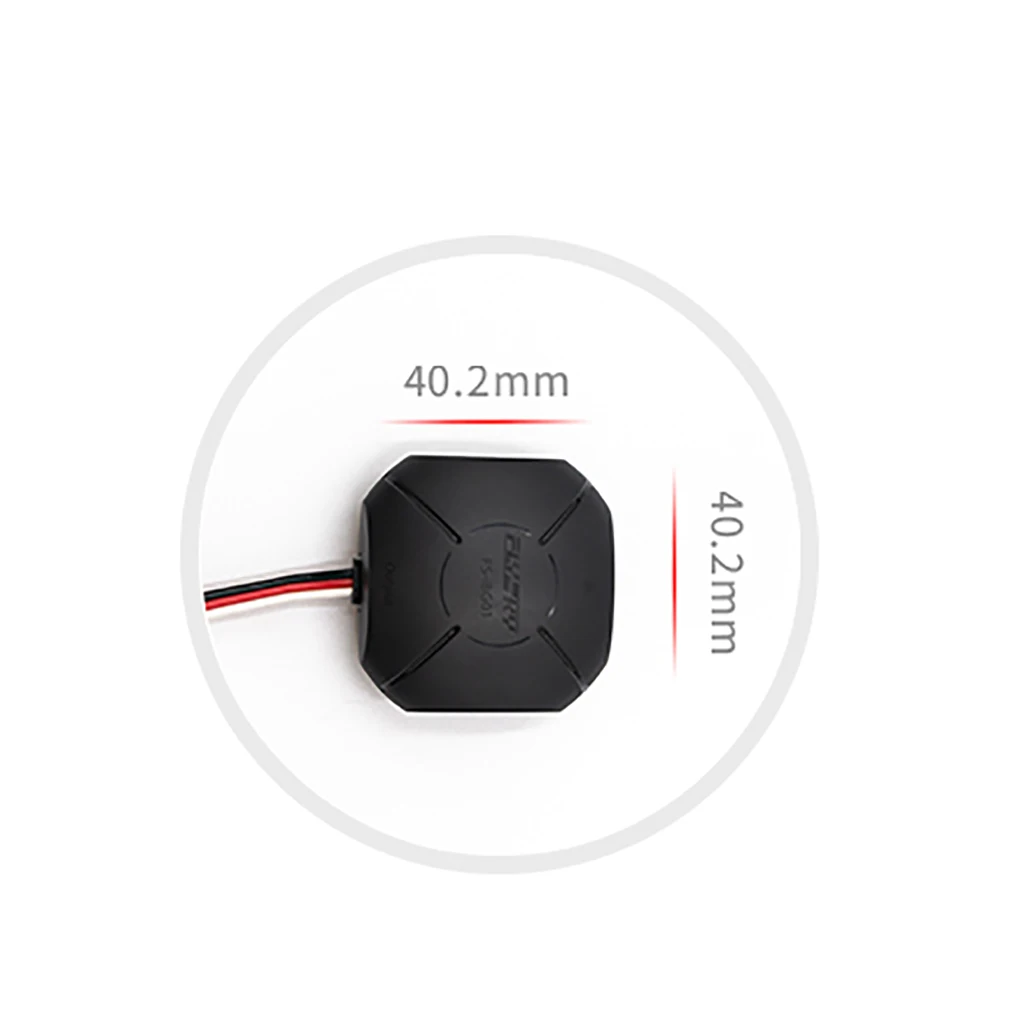

Dimensions: 40.2*40.2*18.5mm

Body weight: 24.1g

Appearance color: black

Certification: CE, FCC

(FS-IBG01)

SKU FS-IBG01
Brand FLYSKY
